SKU: GEMS-11367841784
Service Type: Rebuild / Repair
Vehicle Fitment: BMW M5 (E60, E61), BMW M6 (E63, E64) – S85 V10 5.0L
11367841784
N/A – Service of existing unit only
This is a Repair & Rebuild Service for the Genuine BMW S85 VANOS high-pressure oil pump used in the E60 and E61 M5 and the E63 and E64 M6. The pump supplies the hydraulic pressure required for the S85 Bi-VANOS system to control intake and exhaust camshaft timing.
The outer ring of the pump bearing can gradually deform or crack with age. If the pump is serviced before the bearing seizes or causes extensive internal damage, the original unit can often be rebuilt and returned to service.
Please note: Removal of the pump from the engine and reinstallation after service are not included. This listing covers the internal rebuilding of the removed VANOS pump and includes the additional parts required to complete the engine-side reassembly.

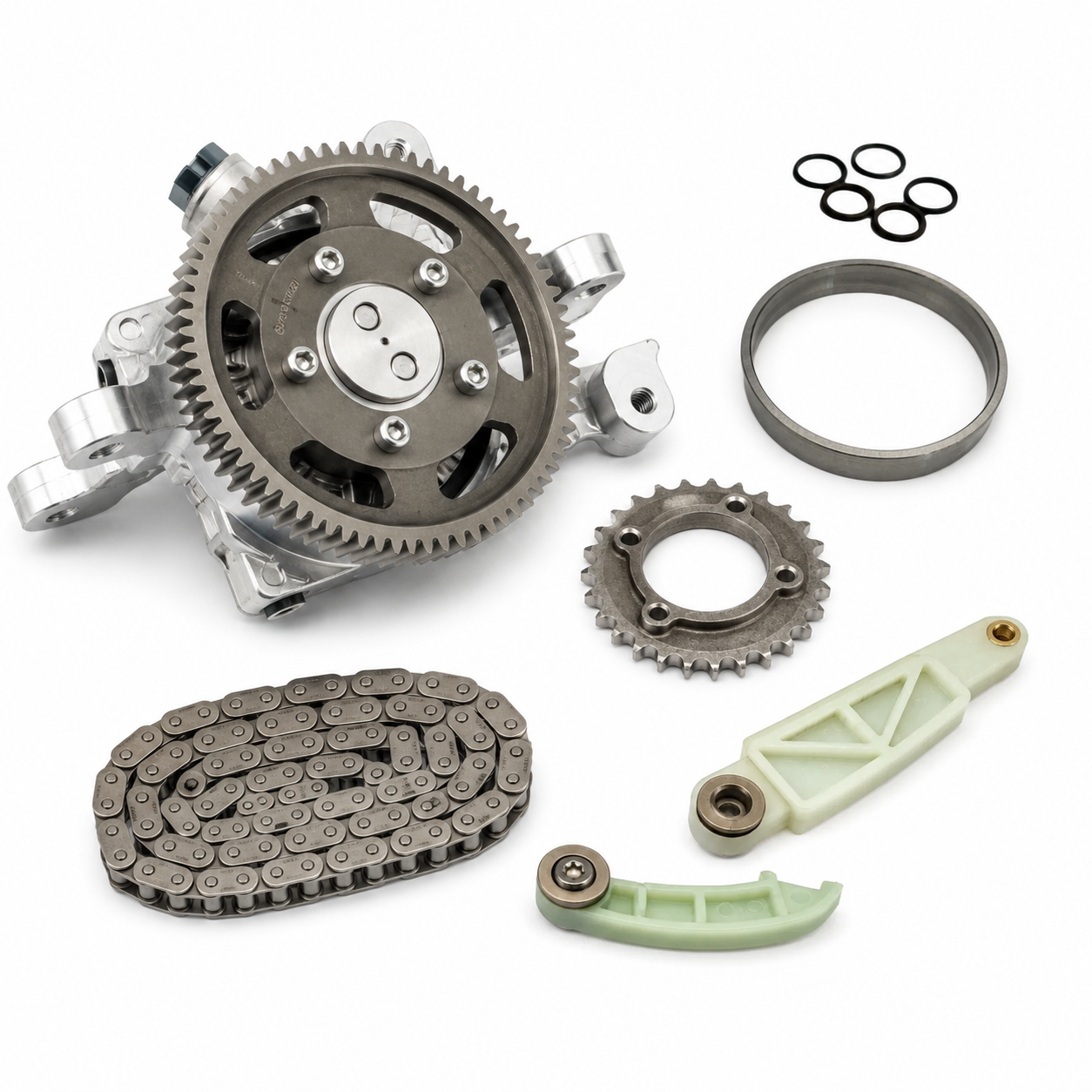

The following components are supplied with your serviced pump but are not installed during the internal pump rebuild. These parts must be installed on the engine when the VANOS pump is refitted:
The pump chain and guide rails are located within the engine assembly rather than inside the removable pump itself. They are therefore returned loose with the serviced pump for installation during engine reassembly.
This service is intended for pumps with a worn, cracked or deformed outer bearing ring and otherwise reusable internal components.
The replacement bearing component is the outer bearing ring only. The internal needle bearing is not included. If inspection reveals a seized or damaged needle bearing, damaged pump housing, worn shaft, damaged pumping elements, damaged pressure valves or other extensive internal damage, the pump may not be rebuildable.
We will contact you if additional damage is discovered before completing any work outside the standard rebuild service.
The VANOS pump should be serviced before the bearing seizes and damages the pump housing or internal components. A functioning pump with a cracked or deformed outer bearing ring has a significantly better chance of being rebuilt successfully than a pump that has already seized.
The included drive chain and chain guides should be installed when the serviced pump is refitted. The VANOS high-pressure line, pressure accumulator, oil connections and surrounding seals should also be inspected during reassembly and replaced if damaged or leaking.
You are responsible for shipping your removed VANOS pump to us for inspection and rebuilding. Return shipping from us back to you is calculated at checkout and included in your total.
Drain all oil from the pump before packaging it. Seal the pump inside a strong plastic bag, protect all openings and use sufficient cushioning inside a sturdy shipping box. We are not responsible for components damaged due to poor packaging or fluid leakage during transit.
Do not include the original chain, guides, hoses, brackets or unrelated components unless specifically requested.
Include a printed copy of your order confirmation email, or clearly write your order number and contact information inside the box.
Ship to:
GEMS autocraft
7245 Rue de la Roche
Montréal, QC H2R 2T2
Canada
To help avoid unnecessary import fees or customs delays, clearly declare the shipment as a used automotive component being temporarily imported for repair and return.
The rebuild process begins once your pump has been received and inspected. Repairability must be confirmed before the service can be completed. Any additional damage, required components or conditions preventing repair will be communicated to you following inspection.
You can track the status of your order anytime by logging into your account and visiting the order details page.
We specialize in BMW S85 system diagnostics, maintenance and component repair. Each VANOS pump is rebuilt in-house with careful inspection and close attention to its internal bearing, sealing, pressure-valve and drive components.
